Serialisation

These generators are designed to be serialised and sent over json. The model for the CompoundGenerator is as follows:

{
    typeid: "scanpointgenerator:generator/CompoundGenerator:1.0",
    generators: [
        {
            typeid: "scanpointgenerator:generator/LineGenerator:1.0"
            axes: "y"
            units: "mm"
            start: 0.0
            stop: 1.0
            size: 5
            alternate = False
        },
        {
            typeid: "scanpointgenerator:generator/LineGenerator:1.0"
            axes: "x"
            units: "mm"
            start: 0.0
            stop: 5.0
            size: 5
            alternate = True
        }
    ],
    excluders: [
        {
            roi: {
                typeid: "scanpointgenerator:roi/CircularROI:1.0"
                centre: [0.0, 0.0]
                radius: 0.5
            }
            scannables: ["x", "y"]
        }
    ],
    mutators: [
        {
            typeid: "scanpointgenerator:mutator/RandomOffsetMutator:1.0"
            seed: 10
            axes: ["x", "y"]
            max_offset: {
                    x: 0.1
                    y: 0.2
            }
        }
    duration: -1.0
    ]
}

The models for each base generator are:

LineGenerator (axes, start and stop can be N-dimensional to create and ND scan):

{
    typeid: "scanpointgenerator:generator/LineGenerator:1.0"
    axes: "x" or ["x", "y"]
    units: "mm" or ["mm", "mm"]
    start: 0.0 or [0.0, 0.0]
    size: 5
    alternate = True
}

LissajousGenerator:

{
    typeid: "scanpointgenerator:generator/LissajousGenerator:1.0"
    axes: ["x", "y"]
    units: ["mm", "mm"]
    centre: [0.0, 0.0]
    span: [10.0, 10.0]
    lobes: 20
    size: 1000
    alternate = False
}

SpiralGenerator:

{
    typeid: "scanpointgenerator:generator/SpiralGenerator:1.0"
    axes: ["x", "y"]
    units: ["mm", "mm"]
    centre: [0.0, 0.0]
    radius: 5.0
    scale: 2.0
    alternate = True
}

ArrayGenerator:

{
    typeid: "scanpointgenerator:generator/ArrayGenerator:1.0"
    axis: "x"
    units: "mm"
    points: [0., 1., 1.5, 2.]
    alternate = True
}

And for the mutators:

RandomOffsetMutator:

{
    typeid: "scanpointgenerator:mutator/RandomOffsetMutator:1.0"
    seed: 10
    axes: ["x", "y"]
    max_offset: {
        x: 0.1
        y: 0.2
    }
}

And the excluders:

To be added…

As an example of serialising, here is a simple snake scan.

from scanpointgenerator import LineGenerator, CompoundGenerator
from scanpointgenerator.plotgenerator import plot_generator

x = LineGenerator("x", "mm", 0.0, 4.0, 5, alternate=True)
y = LineGenerator("y", "mm", 0.0, 3.0, 4)
gen = CompoundGenerator([y, x], [], [])

plot_generator(gen)

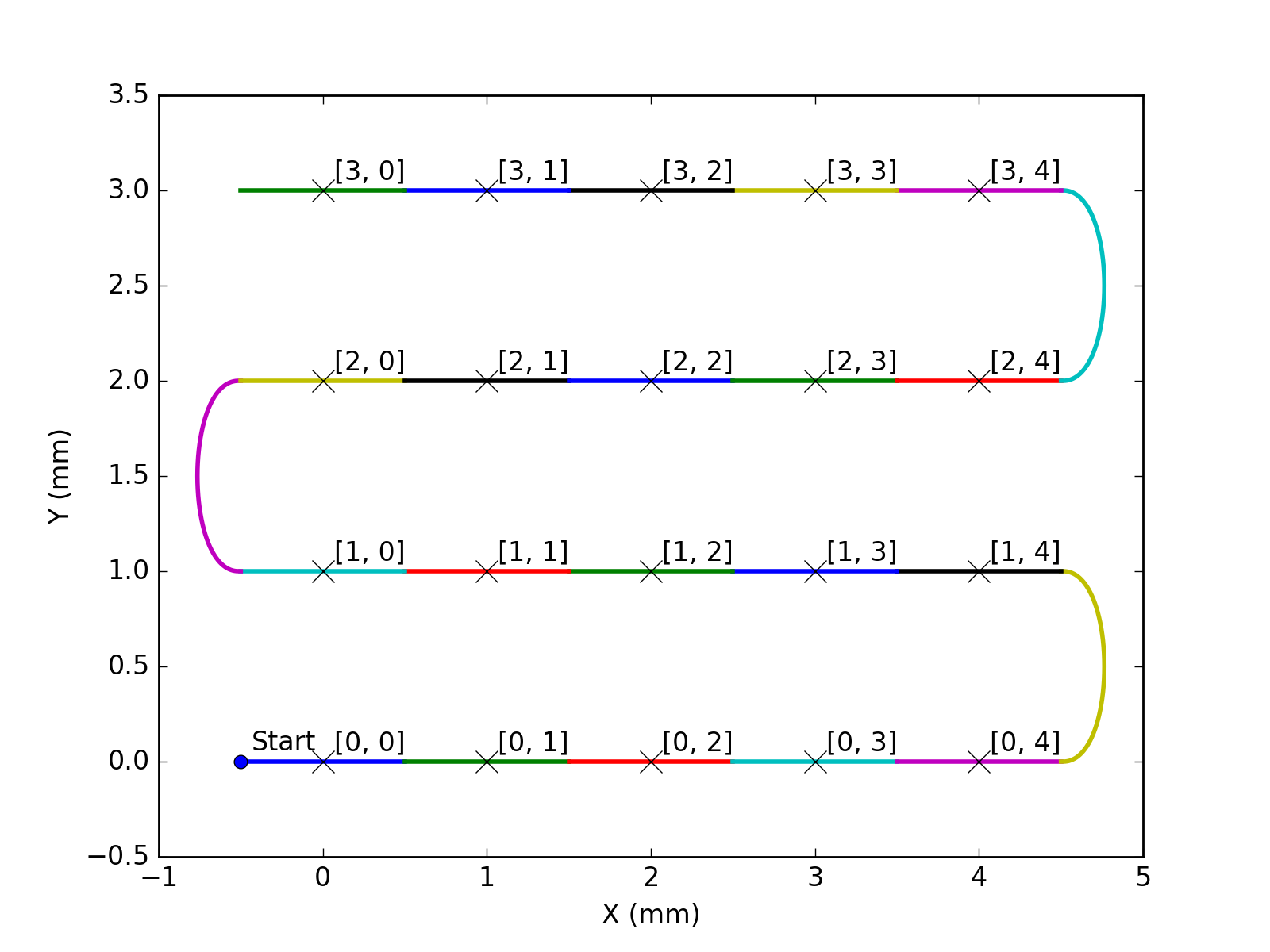

(Source code, png, hires.png, pdf)

It is the same after being serialised and deserialised.

from scanpointgenerator import LineGenerator, CompoundGenerator
from scanpointgenerator.plotgenerator import plot_generator

x = LineGenerator("x", "mm", 0.0, 4.0, 5, alternate=True)
y = LineGenerator("y", "mm", 0.0, 3.0, 4)
gen = CompoundGenerator([y, x], [], [])

gen_dict = gen.to_dict()
new_gen = CompoundGenerator.from_dict(gen_dict)

plot_generator(new_gen)

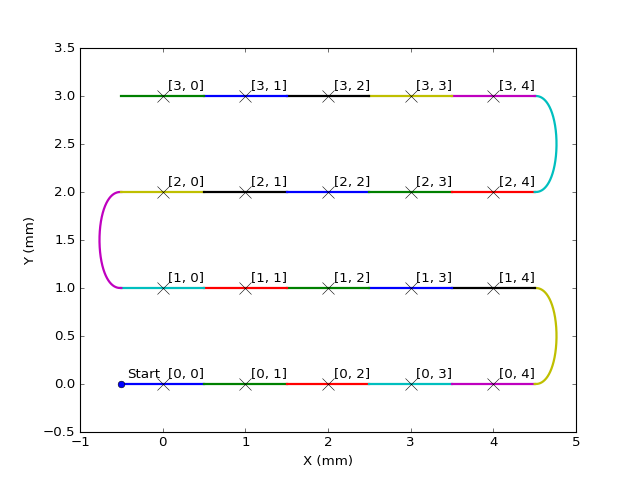

(Source code, png, hires.png, pdf)
