Line Generator

class scanpointgenerator.LineGenerator(axes, units, start, stop, size, alternate=False)

Generate a line of equally spaced N-dimensional points

Parameters:

• axes (str/list(str)) – The scannable axes E.g. “x” or [“x”, “y”]
• units (str/list(str)) – The scannable units. E.g. “mm” or [“mm”, “mm”]
• start (float/list(float)) – The first position to be generated. e.g. 1.0 or [1.0, 2.0]
• stop (float or list(float)) – The final position to be generated. e.g. 5.0 or [5.0, 10.0]
• size (int) – The number of points to generate. E.g. 5
• alternate (bool) – Specifier to reverse direction if generator is nested

prepare_arrays(index_array)

Abstract method to create position or bounds array from provided index array. index_array will be np.arange(self.size) for positions and np.arange(self.size + 1) - 0.5 for bounds.

Parameters:index_array (np.array) – Index array to produce parameterised points Returns:Dictionary of axis names to position/bounds arrays Return type:Positions

to_dict()

Convert object attributes into a dictionary

classmethod from_dict(d)

Create a LineGenerator instance from a serialised dictionary

Parameters:d (dict) – Dictionary of attributes Returns:New LineGenerator instance Return type:LineGenerator

Examples

This example defines a motor “x” with engineering units “mm” which is being scanned from 0mm to 1mm with 5 scan points inclusive of the start. Note that the capture points are as given, so the bounds will be +-0.5*step of each capture point.

from scanpointgenerator import LineGenerator
from scanpointgenerator.plotgenerator import plot_generator

gen = LineGenerator("x", "mm", 0.0, 1.0, 5)
plot_generator(gen)

(Source code, png, hires.png, pdf)

LineGenerator is N dimensional; just pass in ND lists for name, start and stop.

from scanpointgenerator import LineGenerator
from scanpointgenerator.plotgenerator import plot_generator

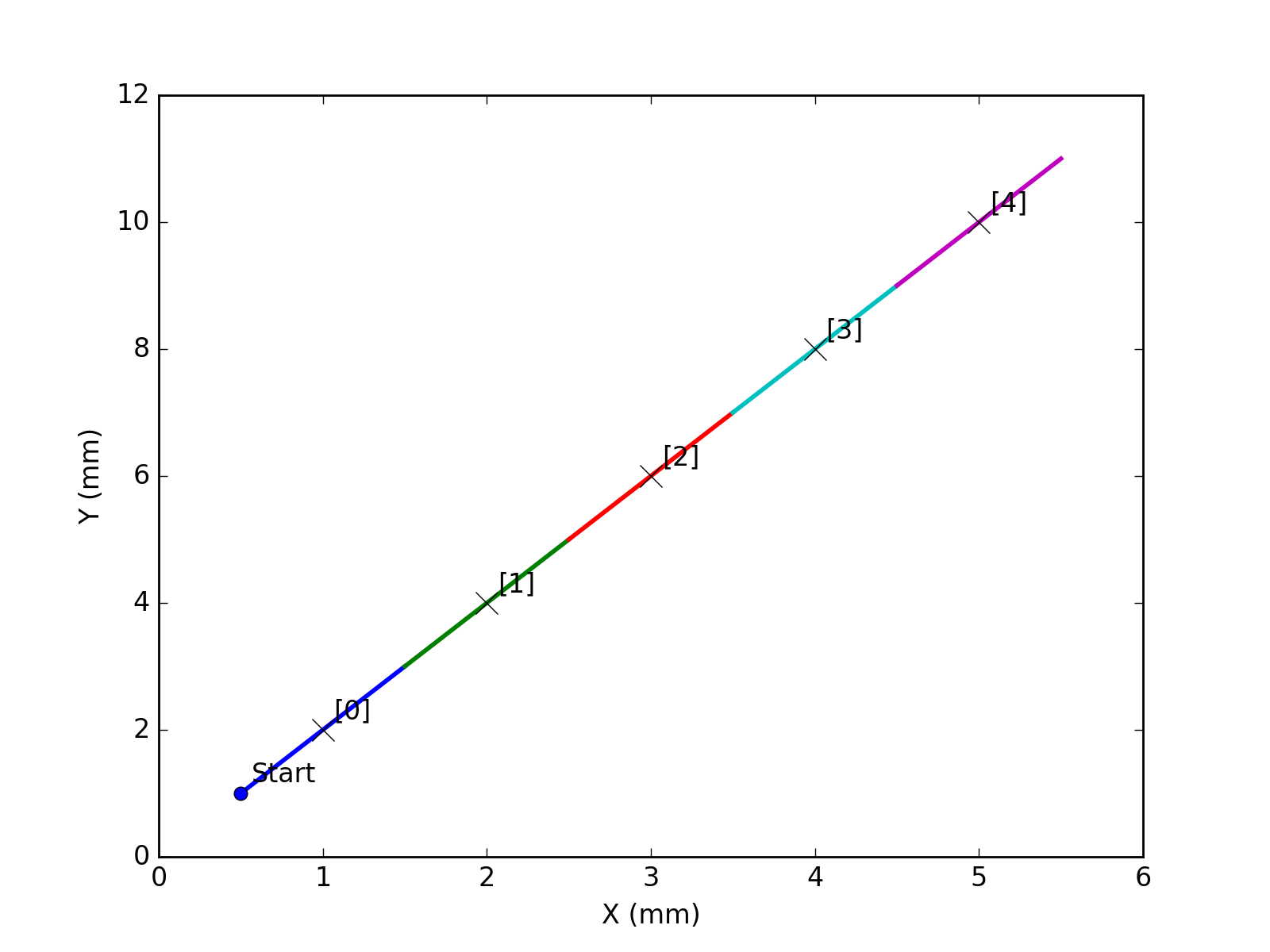

gen = LineGenerator(["x", "y"], ["mm", "mm"], [1.0, 2.0], [5.0, 10.0], 5)
plot_generator(gen)

(Source code, png, hires.png, pdf)
