Compound Generator

class scanpointgenerator.CompoundGenerator(generators, excluders, mutators, duration=-1, continuous=True)

Nest N generators, apply exclusion regions to relevant generator pairs and apply any mutators before yielding points

Parameters:

• generators (list(Generator)) – List of Generators to nest
• excluders (list(Excluder)) – List of Excluders to filter points by
• mutators (list(Mutator)) – List of Mutators to apply to each point
• duration (double) – Point durations in seconds (-1 for variable)
• continuous (boolean) – Make points continuous (set upper/lower bounds)

size = None

int – Final number of points to be generated - valid only after calling prepare

shape = None

tuple(int) – Final shape of the scan - valid only after calling prepare

dimensions = None

list(Dimension) – Dimension instances - valid only after calling prepare

prepare()

Prepare data structures required for point generation and initialize size, shape, and dimensions attributes. Must be called before get_point or iterator are called.

iterator()

Iterator yielding generator positions at each scan point

Yields:Point – The next point

get_point(n)

Retrieve the desired point from the generator

Parameters:n (int) – point to be generated Returns:The requested point Return type:Point

to_dict()

Convert object attributes into a dictionary

classmethod from_dict(d)

Create a CompoundGenerator instance from a serialised dictionary

Parameters:d (dict) – Dictionary of attributes Returns:New CompoundGenerator instance Return type:CompoundGenerator

Raster Scan Example

This scan will create an outer “y” line scan with 4 points, then nest an “x” line scan inside it with 5 points.

from scanpointgenerator import LineGenerator, CompoundGenerator
from scanpointgenerator.plotgenerator import plot_generator

xs = LineGenerator("x", "mm", 0.0, 0.5, 5, alternate=False)
ys = LineGenerator("y", "mm", 0.0, 0.5, 4)
gen = CompoundGenerator([ys, xs], [], [])
plot_generator(gen)

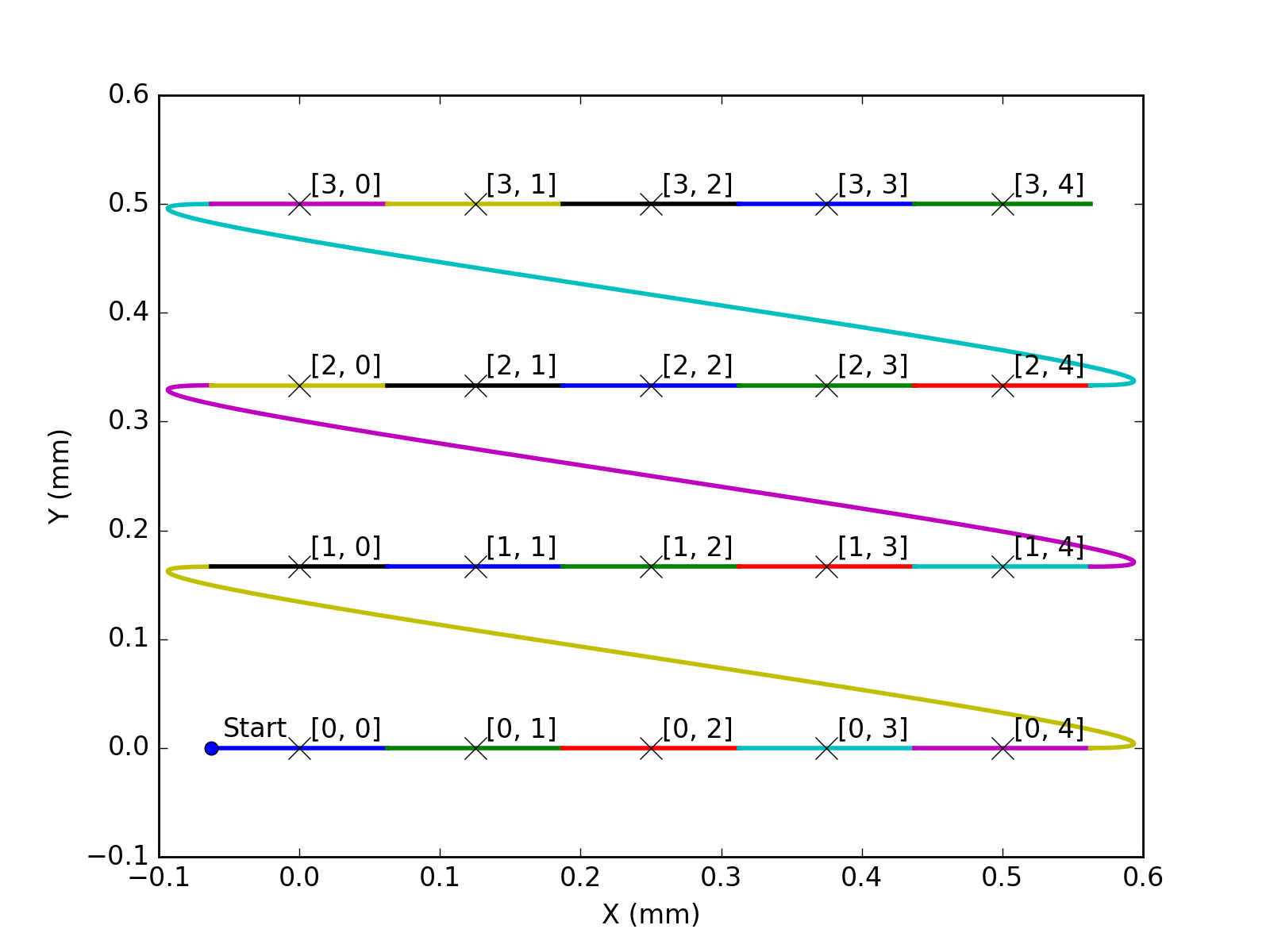

(Source code, png, hires.png, pdf)

Snake Scan Example

This scan will create an outer “y” line scan with 4 points, then nest an “x” line scan inside it with 5 points. On every second row, the “x” line scan will be run in reverse to give a snake scan.

from scanpointgenerator import LineGenerator, CompoundGenerator
from scanpointgenerator.plotgenerator import plot_generator

xs = LineGenerator("x", "mm", 0.0, 0.5, 5, alternate=True)
ys = LineGenerator("y", "mm", 0.0, 0.5, 4)
gen = CompoundGenerator([ys, xs], [], [])
plot_generator(gen)

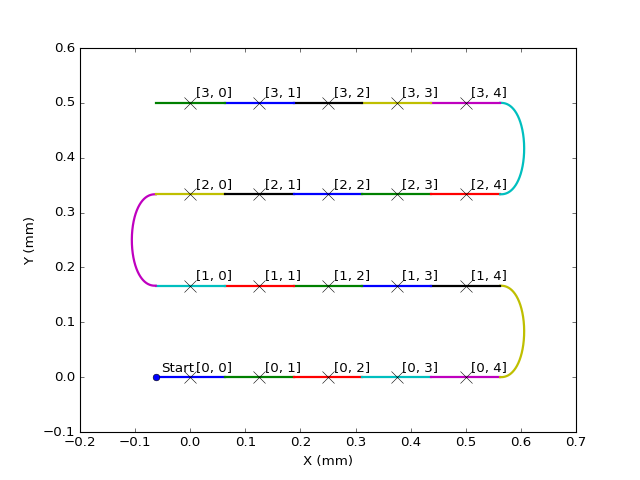

(Source code, png, hires.png, pdf)

Restrictions

Generators with axes filtered by an excluder or between any such generators must have a common alternate setting. An exception is made for the outermost generator as it is not repeated.
