Creating a GeneratorΒΆ

The idea of CompoundGenerator is that you can combine generators, excluders and mutators arbitrarily. The following will show some more extensive examples to show the capabilities of scanpointgenerator. Remember to account for the restrictions specified in Restrictions.

A spiral scan with an offset rectangular roi overlay and randomly offset points in the y direction

from scanpointgenerator import LineGenerator, SpiralGenerator, \
CompoundGenerator, ROIExcluder, RandomOffsetMutator, RectangularROI
from scanpointgenerator.plotgenerator import plot_generator

spiral = SpiralGenerator(["x", "y"], "mm", [0.0, 0.0], 10.0,
                         alternate=True)
rectangle = ROIExcluder([RectangularROI([1.0, 1.0], 8.0, 8.0)], ["x", "y"])
mutator = RandomOffsetMutator(2, ["x", "y"], dict(x=0.0, y=0.25))
gen = CompoundGenerator([spiral], [rectangle], [mutator])

plot_generator(gen, rectangle)

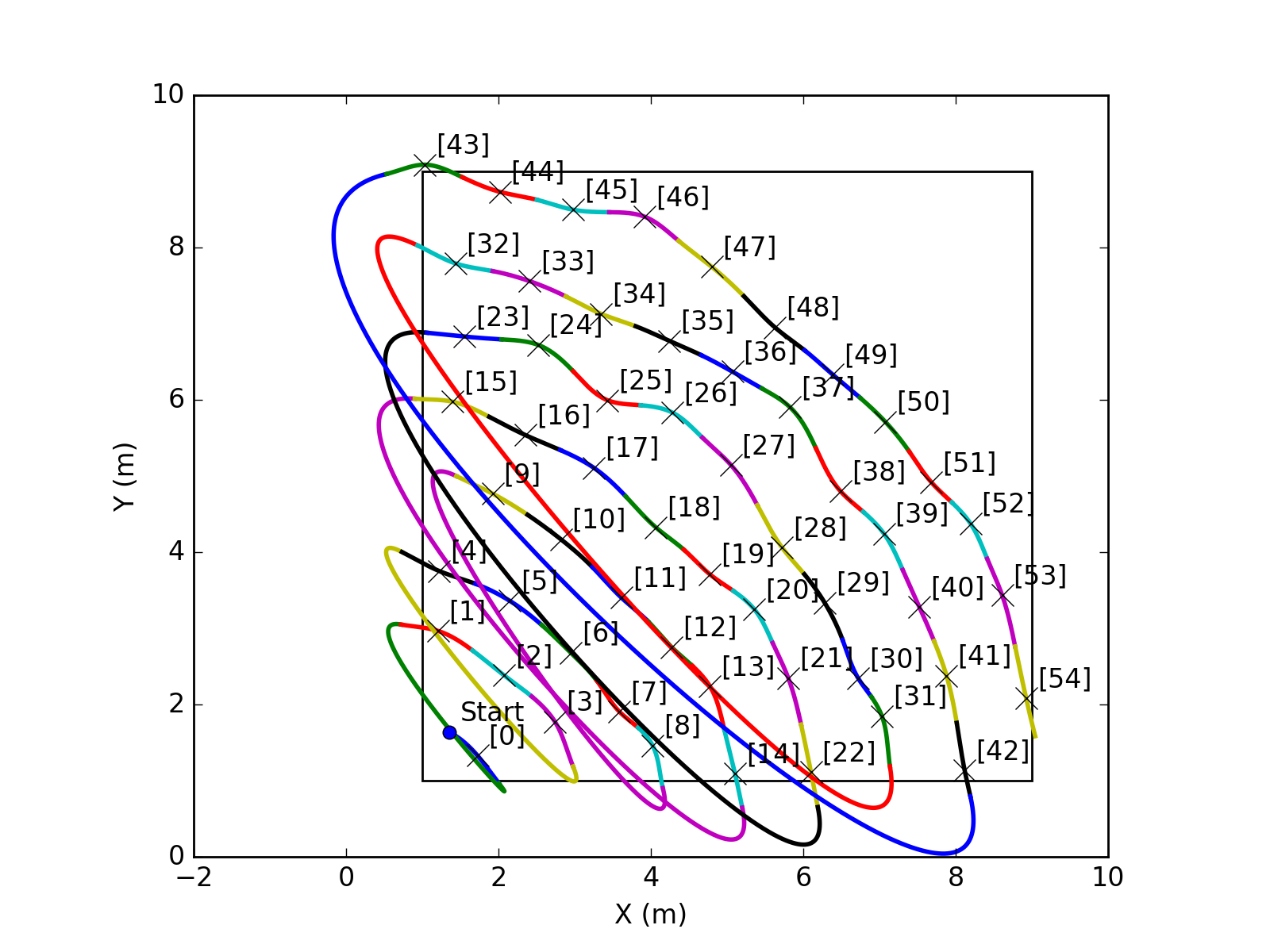

(Source code, png, hires.png, pdf)

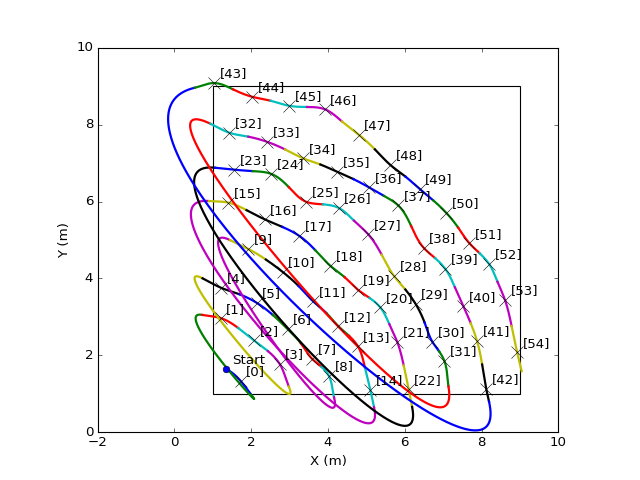

_images/creating-1.png

A spiral scan at each point of a line scan with alternating direction

from scanpointgenerator import LineGenerator, SpiralGenerator, \
CompoundGenerator

line = LineGenerator("z", "mm", 0.0, 20.0, 3)
spiral = SpiralGenerator(["x", "y"], "mm", [0.0, 0.0], 1.2,
                         alternate=True)
gen = CompoundGenerator([line, spiral], [], [])
gen.prepare()

for point in gen.iterator():
    for axis, value in point.positions.items():
        point.positions[axis] = round(value, 3)
    print(point.positions)

(Source code)

{'y': -0.321, 'x': 0.237, 'z': 0.0}
{'y': -0.25, 'x': -0.644, 'z': 0.0}
{'y': 0.695, 'x': -0.56, 'z': 0.0}
{'y': 0.992, 'x': 0.361, 'z': 0.0}
{'y': 0.992, 'x': 0.361, 'z': 10.0}
{'y': 0.695, 'x': -0.56, 'z': 10.0}
{'y': -0.25, 'x': -0.644, 'z': 10.0}
{'y': -0.321, 'x': 0.237, 'z': 10.0}
{'y': -0.321, 'x': 0.237, 'z': 20.0}
{'y': -0.25, 'x': -0.644, 'z': 20.0}
{'y': 0.695, 'x': -0.56, 'z': 20.0}
{'y': 0.992, 'x': 0.361, 'z': 20.0}

Three nested line scans with an excluder operating on the two innermost axes

from scanpointgenerator import LineGenerator, CompoundGenerator, \
ROIExcluder, CircularROI

line1 = LineGenerator("x", "mm", 0.0, 2.0, 3)
line2 = LineGenerator("y", "mm", 0.0, 1.0, 2)
line3 = LineGenerator("z", "mm", 0.0, 1.0, 2)
circle = ROIExcluder([CircularROI([1.0, 1.0], 1.0)], ["x", "y"])
gen = CompoundGenerator([line3, line2, line1], [circle], [])
gen.prepare()

for point in gen.iterator():
    print(point.positions)

(Source code)

{'y': 0.0, 'x': 1.0, 'z': 0.0}
{'y': 0.0, 'x': 1.0, 'z': 1.0}
{'y': 1.0, 'x': 0.0, 'z': 0.0}
{'y': 1.0, 'x': 1.0, 'z': 0.0}
{'y': 1.0, 'x': 2.0, 'z': 0.0}
{'y': 1.0, 'x': 0.0, 'z': 1.0}
{'y': 1.0, 'x': 1.0, 'z': 1.0}
{'y': 1.0, 'x': 2.0, 'z': 1.0}
