Mutators¶
Mutators are used for post processing points after they have been generated and filtered by any regions of interest.
-
class
scanpointgenerator.
Mutator
[source]¶ Abstract class to apply a mutation to the points of an ND ScanPointGenerator
-
mutate
(point, index)[source]¶ Abstract method to take a point, apply a mutation and then return the new point
Parameters: - Point – point to mutate
- Index – one-dimensional linear index of point
Returns: Mutated point
Return type:
-
RandomOffsetMutator¶

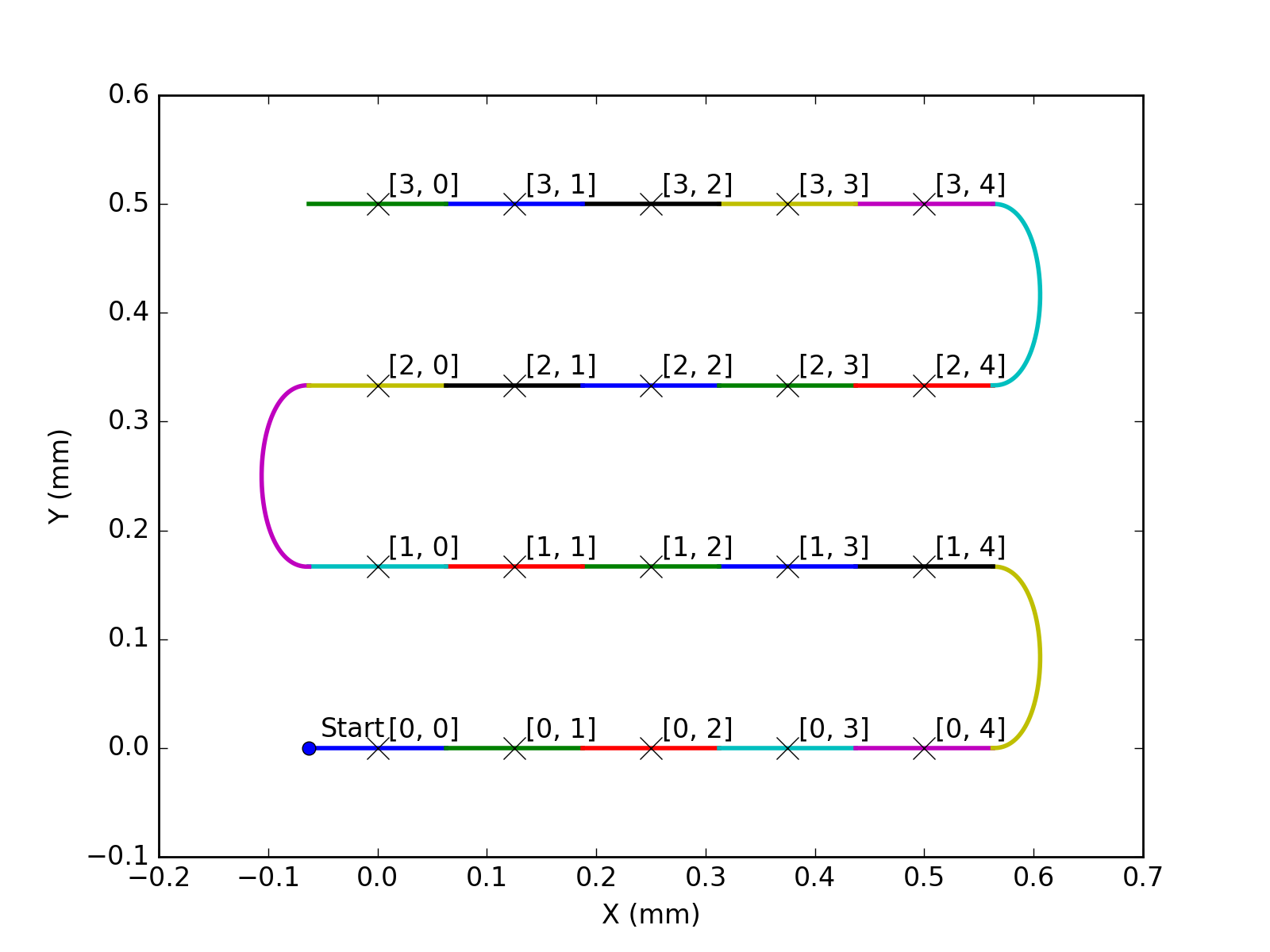

This is used to apply a random offset to each point in an iterator. Here we apply it to a snake scan
from scanpointgenerator import LineGenerator, CompoundGenerator
from scanpointgenerator.plotgenerator import plot_generator
xs = LineGenerator("x", "mm", 0.0, 0.5, 5, alternate=True)
ys = LineGenerator("y", "mm", 0.0, 0.5, 4)
gen = CompoundGenerator([ys, xs], [], [])
plot_generator(gen)
(Source code, png, hires.png, pdf)

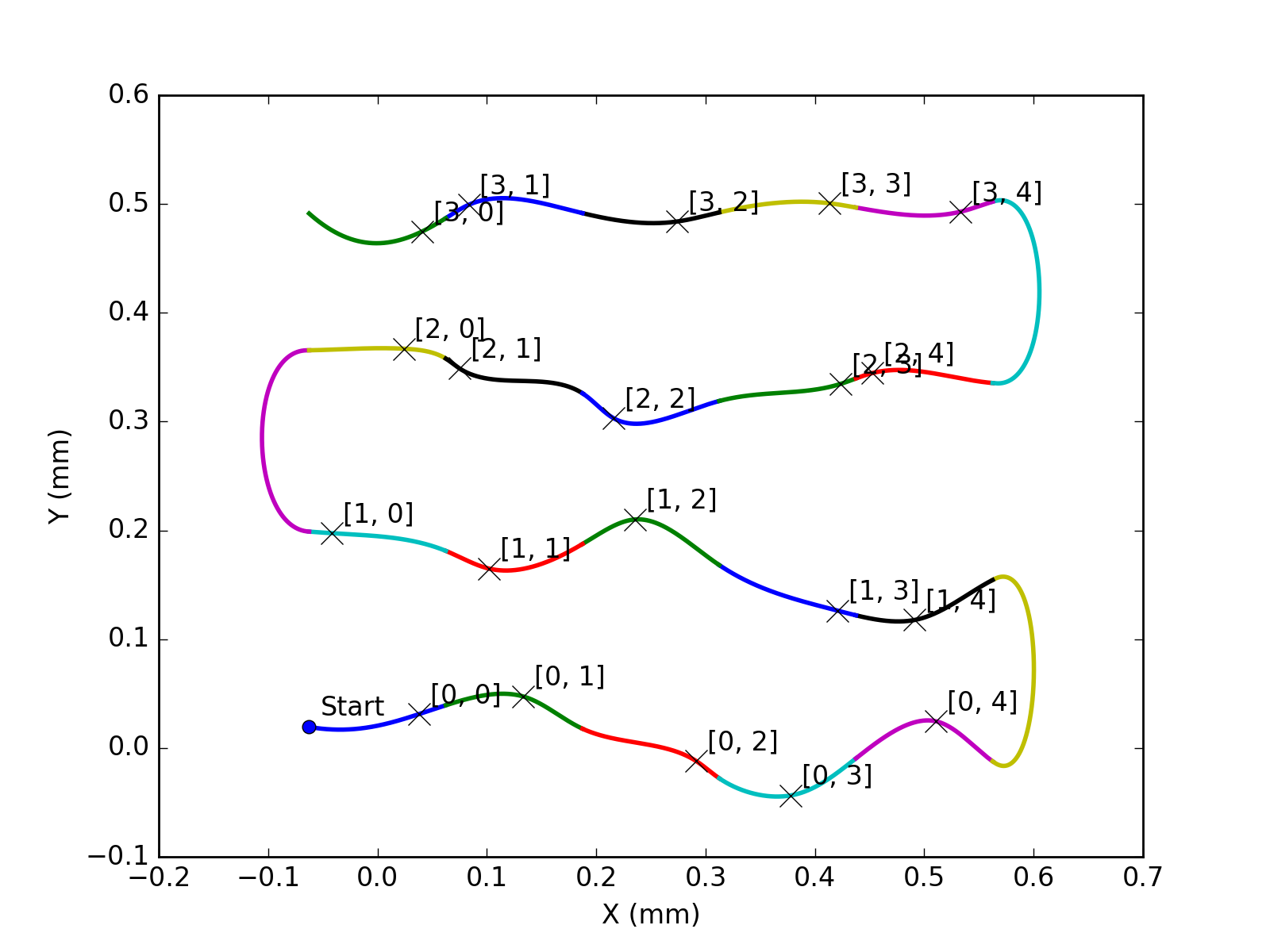

And with the random offset
from scanpointgenerator import LineGenerator, CompoundGenerator, RandomOffsetMutator
from scanpointgenerator.plotgenerator import plot_generator
xs = LineGenerator("x", "mm", 0.0, 0.5, 5, alternate=True)
ys = LineGenerator("y", "mm", 0.0, 0.5, 4)
random_offset = RandomOffsetMutator(seed=12345, axes = ["x", "y"], max_offset=dict(x=0.05, y=0.05))
gen = CompoundGenerator([ys, xs], [], [random_offset])
plot_generator(gen)
(Source code, png, hires.png, pdf)

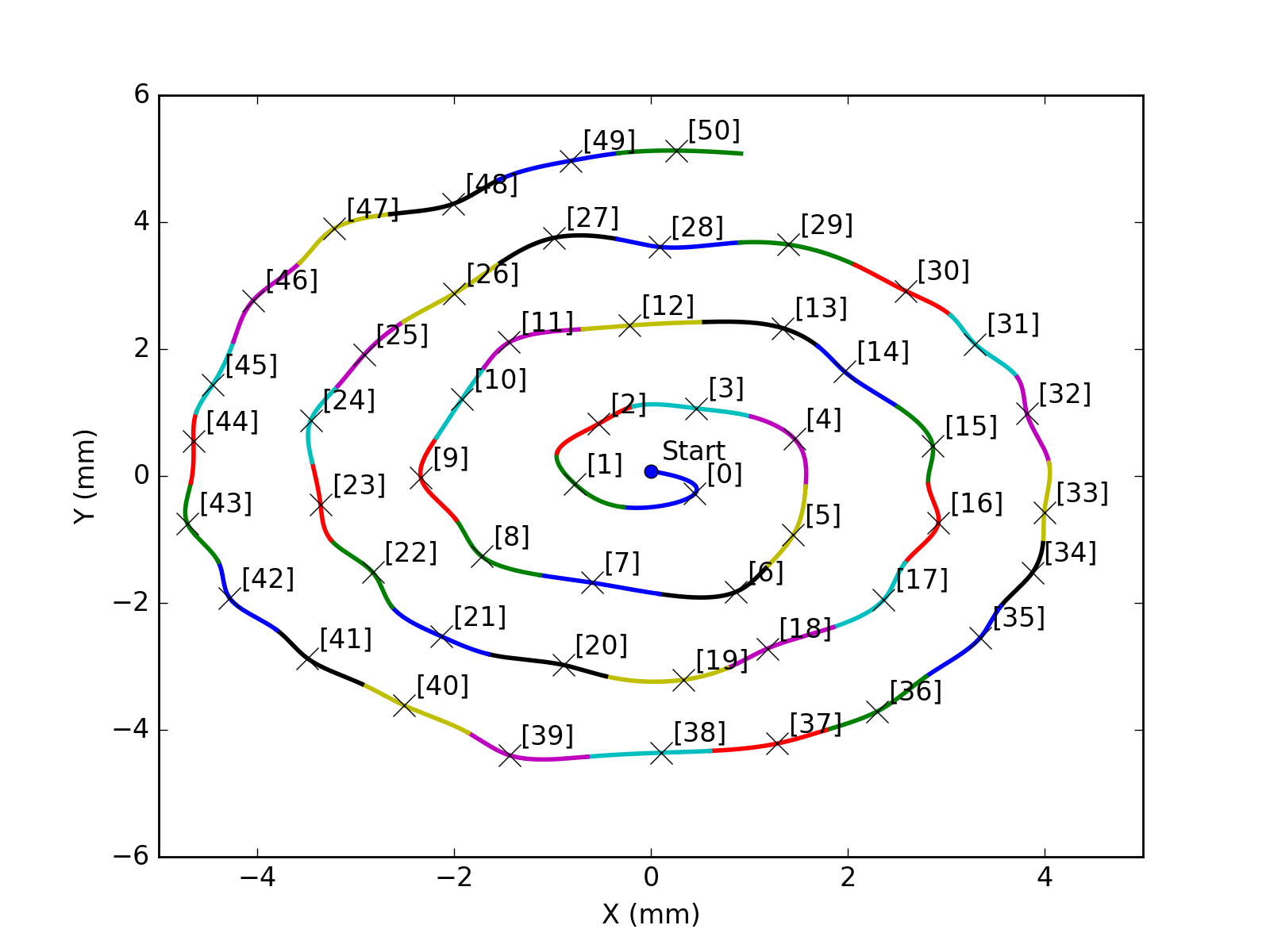

Example with a spiral
from scanpointgenerator import SpiralGenerator, CompoundGenerator, RandomOffsetMutator
from scanpointgenerator.plotgenerator import plot_generator
spiral = SpiralGenerator(["x", "y"], ["mm", "mm"], [0., 0.], 5.0, 1.25)
random_offset = RandomOffsetMutator(seed=12345, axes = ["x", "y"], max_offset=dict(x=0.2, y=0.2))
gen = CompoundGenerator([spiral], [], [random_offset])
plot_generator(gen)
(Source code, png, hires.png, pdf)
